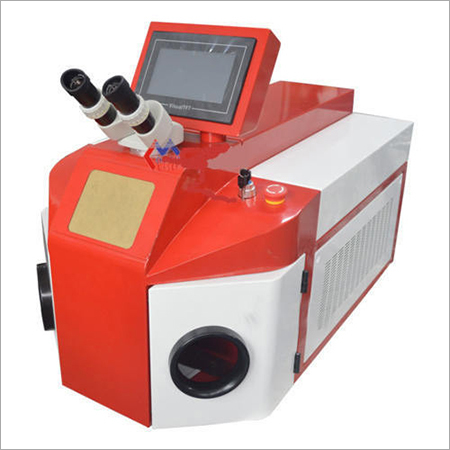

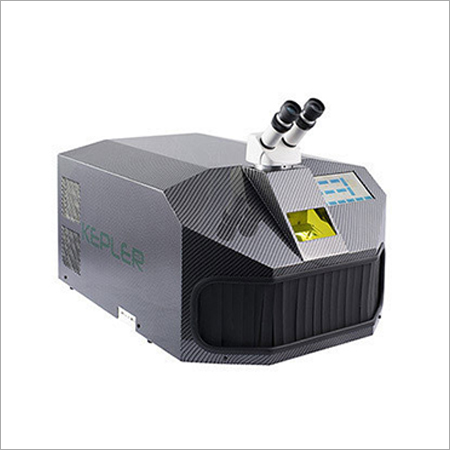

Gold Laser Welding Machine

Aiming System

Webbed eyepiece + laser pin

Autodiagnosis System

Automatic with warnings on display

Average Power

100 W

Compressed Air Gun

Internal mobile nozzle for air cooling

Cooling Circuit

Integrated air-to-water with automatic sleep mode and deionizer filter

Display

Colorful graphic display 5,7"

Fumes Suction

Integrated

Laser Source

NdYAG (1064 nm)

PC connection

USB

Peak Power

10 kW

Power Supply

230V 50/60Hz, 10A

Programs

50 programs

Pulse Energy

Max. 130 (J)

Pulse Filling

With duty cycle adjustable by the operator

Pulse Frequency

Single shot or up to 20 pulse/sec dinamically controlled (1-20 Hz)

Pulse Width

0.5 - 20 with steps of 0,5 (ms)

Size

500 (W) x 515 (H) x 660 (D) mm

Spot Diameter

0.2 - 2.0 automatic regulation with steps of 0.1 mm

Weight

65 Kg

Working Area Lighting

Cold light source (led)
